The MOSFET power supply offers the amplifier a higher efficiency and longer lifespan for a greater user experience.
The low profile build is designed to be unobtrusive and helps with installation flexibility; perfect for installing in small spaces.
This product is carefully crafted for efficient and accurate bass, providing you with great power handling.

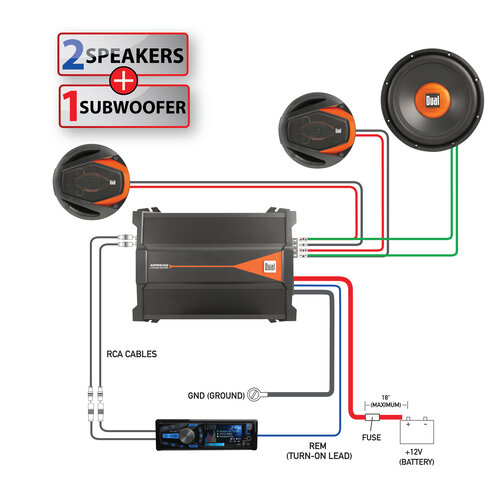

Required for installation:
8 AWG amplifier installation kit, 16 AWG speaker wire (for speakers), 12 AWG speaker wire (for subwoofers), speakers and/or subwoofer(s).
Amplifier installation kit, subwoofers, speakers, headunit, and speaker wire sold separately.
| Speaker Outputs | |
|---|---|
| Class | |
| Inputs | |
| Bridgeable | |
| 2 Ohm Stable Stereo Operation | |
| Frequency Response | |
| Power | 150 Watts RMS x 2 channels @ 4 ohms, 300 Watts RMS x 2 channels @ 2 ohms, 600 Watts RMS x 1 channels @ 4 ohms (bridged) |
| Signal to Noise Ratio | |
| Total Dynamic Power | |
| Amplifier Outputs | |
| Crossover | |
| Impedance | |
| Adjustable Bass Boost | |
| Gain Adjustment | |
| Power Supply | |
| Fuse Size and Type | |
| Dimensions | |
| Recommended Power/Ground Wire | |
| Recommended Speaker Wire |
Features
Features:
- Low and high level inputs
- Variable gain adjustment (200mV ~ 6V)
- Selectable crossover (high pass/low pass/full range)
- Variable low/high pass crossovers
- Bass boost (0, 6, 12dB)
- PWM MOSFET power supply
- Bridgeable operation for subwoofer applications
- 2 Ohm stable stereo operation
- Class AB output design
- Stereo/bridged simultaneous operation
Specifications:
- 150 Watts x 4 channels @ 4 ohms
- 300 Watts x 4 channels @ 2 ohms
- 600 Watts x 2 channel @ 4 ohms (bridged)
- Total dynamic power: 1200 Watts
- Signal to noise ratio: 75dBA (reference: 1 Watt into 4 ohms)
- Frequency response: 20Hz ~ 20kHz
- Amplifier dimensions: 2.76” (H) x13.82” (W) x 10.55“ (D)
- Typical installation dimensions: 3.75”(H) x 15.00” (W) x 11.5” (D)
