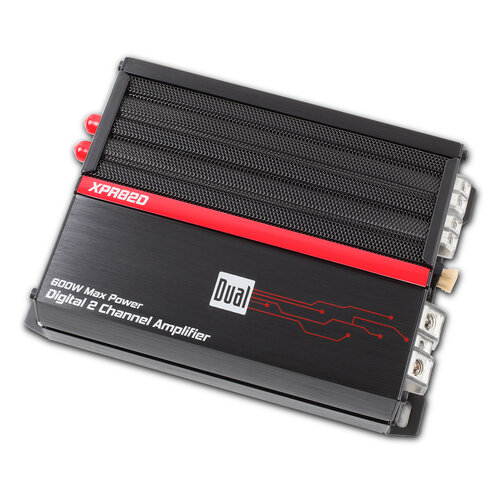

Digital 2 Channel MOSFET Amplifier – XPR82D
Retail Exclusive:
No Longer Available
Continuous Power
80W RMS x 2
240 Watts RMS x 1
Compact Design
This product’s compact design offers you a variety of installation options. Place it behind the back seat of your car, in your truck, or in a variation of other positions!
Hook up the amplifier to any stereo for a big boost in your sound’s power.
This product is carefully crafted for efficient and accurate bass, providing you with great power handling.
Required for installation:
8 AWG amplifier installation kit, 16 AWG speaker wire (for speakers), 12 AWG speaker wire (for subwoofers), speakers or subwoofers.
| Speaker Outputs | |
|---|---|
| Class | |
| Inputs | |
| Bridgeable | |
| 2 Ohm Stable Stereo Operation | |
| Frequency Response | |
| Power | 120 Watts RMS x 2 channels @ 2 ohms, 240 Watts RMS x 1 channel @ 4 ohms (bridged), 80 Watts RMS x 2 channels @ 4 ohms |
| Signal to Noise Ratio | |
| Total Dynamic Power | |
| Outputs | |
| Crossover | Variable high-pass crossover (40 Hz – 250 Hz), Variable low-pass crossover (40 Hz – 250 Hz) |
| Speaker Impedance | |
| Gain Adjustment | |
| Adjustable Bass Boost | |
| Power Supply | |
| Fuse Size and Type | |
| Dimensions | |
| Recommended Power/Ground Wire | |
| Recommended Speaker Wire |
Features
Features:

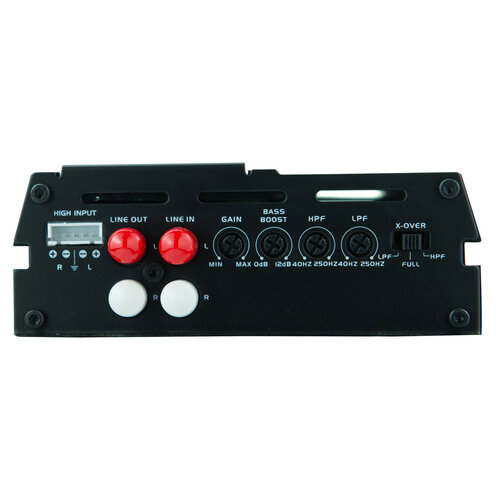

- Class D design
- High level inputs (speaker wire)
- Low level inputs (RCA)
- Variable gain adjustment (200 mV ~ 6 V)
- Selectable crossover (high pass/low pass/full range)
- Variable low-pass crossover (40 Hz – 250 Hz)
- Variable high-pass crossover (40 Hz – 250 Hz)
- Variable bass boost @ 50 Hz (0-12 dB)
- PWM MOSFET power supply
- RCA pass-thru outputs
- Bridgeable operation for subwoofer applications
- 2 Ohm stable stereo operation
- Stereo/bridged simultaneous operation

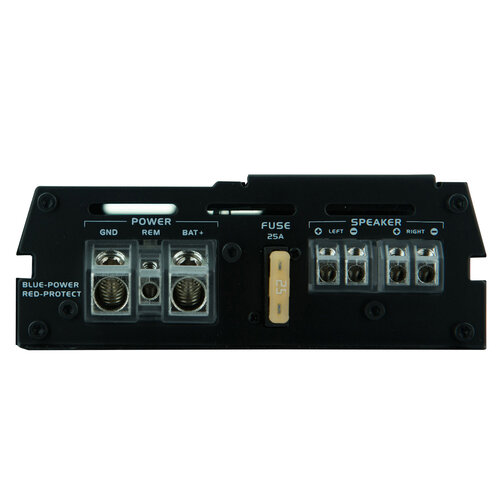

- Recommended power/ground wire: 8 AWG
- Recommended speaker wire: 16 AWG
- Fuse size and type: 25 A / ATO
- Amplifier dimensions: 1.77” x 7.18” x 5” (HxWxD)
Specifications:
- 80 Watts RMS x 2 channels @ 4 ohms
- 120 Watts RMS x 2 channels @ 2 ohms
- 240 Watts RMS x 1 channel @ 4 ohms (bridged)
- Total dynamic power: 600 Watts
- Signal to noise ratio 100 dBA (reference: 1 Watt into 4 ohms)
- Frequency response 20 Hz ~ 20 kHz
Manuals (PDFs)
