7″ AV Media Receiver with Apple CarPlay and Android Auto – DMCPA70BT
Authorized Retailer:
Connected Car
With support for both Apple CarPlay™ and Android Auto™ you can control key phone features directly from the receiver’s touchscreen or via voice-control — significantly reducing driver distraction.
Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via USB.
Messages
Ask your phone assistant to send, read, and reply to text messages. This hands free operation minimizes distraction and allows you to keep your hands on the wheel and eyes on the road
Maps

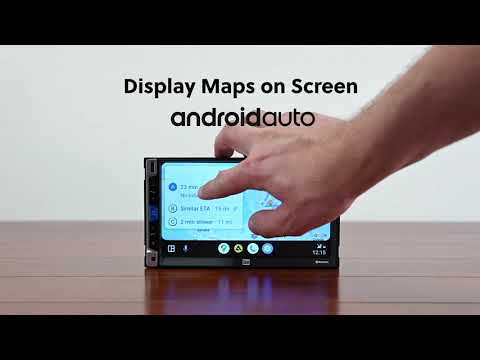

Use your phone assistant to request turn-by-turn directions – search by address or by points of interest. Maps will be mirrored on the receiver’s screen, including traffic information and estimated time to destination.
Music
Access music directly through the receiver’s touchscreen and via your phone assistant. The receiver will display artist and track information.
Phone
Use your phone assistant to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.
| Playback | |
|---|---|
| Size | |
| Phone Connectivity | |
| Amplifier Outputs | |
| Steering Wheel Control Compatible | |
| Screen Size | |
| Peak Power Output | |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |
| Inputs - All | |
| USB Charge | |
| File Playback | |
| RCA Outputs | |
| Front Panel | |
| Illumination | |
| Audio Processing | |
| AM/FM Receiver |
Features
- 7″ Extra-large LED backlit touchscreen LCD (1024p x 600p)
- Works with Apple CarPlay™
- Supports Android Auto™
- Built-in Bluetooth with hands-free calling, music streaming with ID3 tags, and phonebook support (HFP, A2DP, AVRCP, PBAP). External microphone.
- AM/FM tuner with 30 stations presets (18FM/12AM)
- Rear USB input with 1.5 Amp fast charging
- Backup camera input (RCA)
- Rear RCA A/V input
- 3 Pair of RCA preamp outputs (Front+Rear+Sub)
- Media playback: USB
- File formats: FLAC/MP3
- Digital media unit – will not play CDs/DVDs
- 8 Band graphic EQ
- 8 EQ presets (Default, Custom, Classic, Rock, Jazz, Electric, Pop, & Soft)
- 200 Watts (50 W x 4) MOSFET
- Steering Wheel Control (SWC) Input (Compatible with most SWC Interfaces)
- Wireless IR remote included
Manuals (PDFs)
Firmware
FIRMWARE UPDATES AND IMPROVEMENTS:
- Improves the screen resolution while in Apple CarPlay or Android Auto
Download Firmware Update for DMCPA70BT
Download the firmware file from the link above.
- Unzip the downloaded file.
- Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
- With the vehicle Off, insert the USB Thumb Drive with Update Firmware into the DMCP70BT USB Port.
- Turn the vehicle On, the radio will boot up with the update screen.
- Once the update is complete, the radio will shut down and power back up.
- Remove the USB Thumb Drive from the unit.
- The update is now complete.
To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see the information listed below, the update was done correctly.
– Version: DMCPA70BT V1.2
– Date: 20210513_1945
– SDK: 24.0.2.2.2.0.1.0
