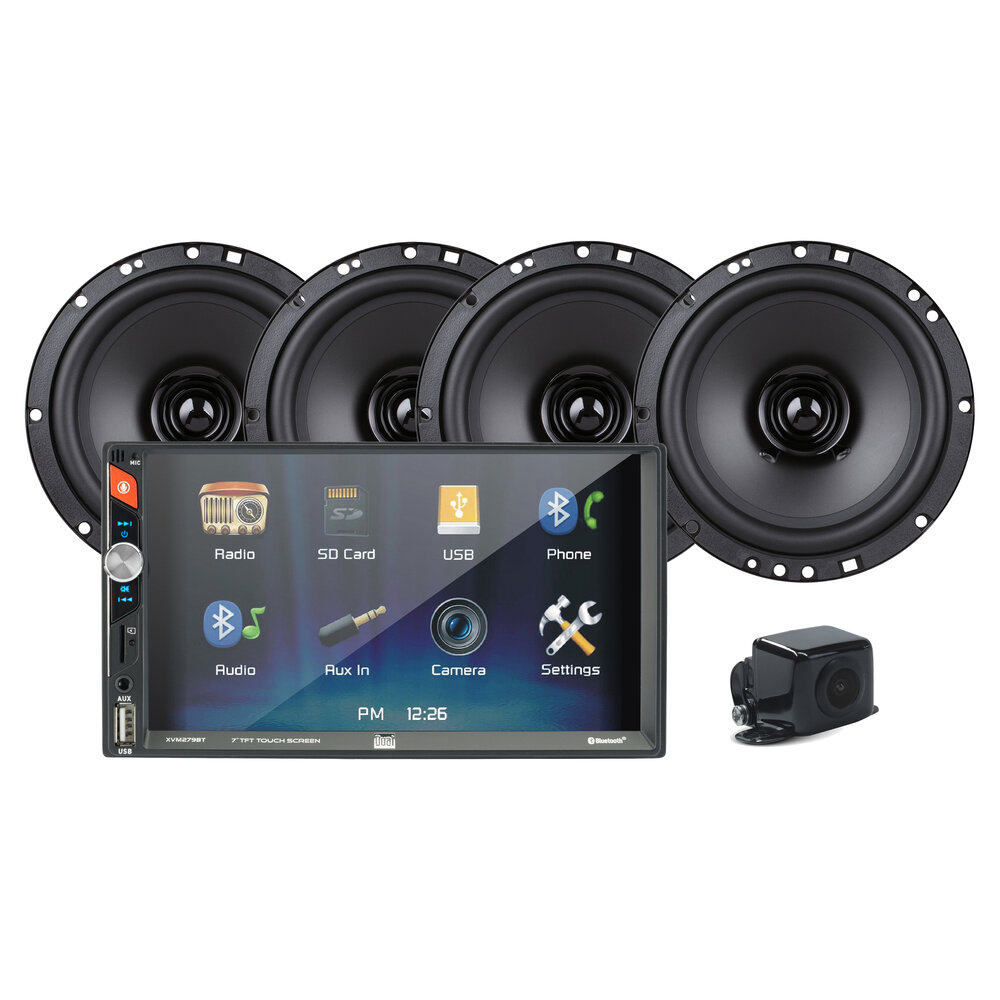

7″ AV Media Receiver with four 6.5″ Speakers and Backup Camera – XCP2109SP
Retail Exclusive:
No Longer Available
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

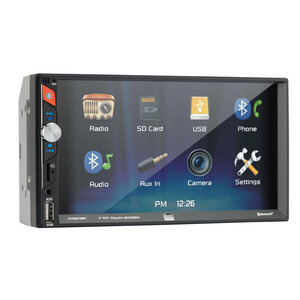

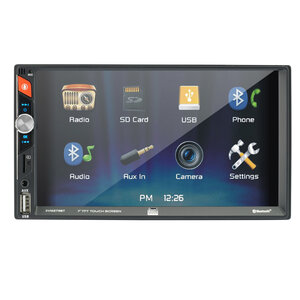

7″ Full Color Touchscreen
Easily manage and control your AM/FM radio, USB drive, AUX input, microSD card, and sources with Bluetooth® technology by using the large colorful touchscreen. Add an optional rear view camera to see behind you when backing up for safer driving.
Voice Activation Button
The receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car’s Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!

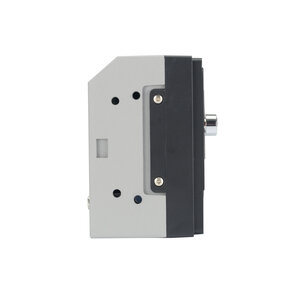

Slim Mount Design
This receiver is specially designed with a slim build to fit various dash openings and a shallow 5.1in (130mm) chassis that helps make installation easy and efficient!
iPlug Smart Remote App
Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.
Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.
Download iPlug Smart Remote P1
Navigation App On-Screen button
The on-screen navigation button can open and display your favorite navigation apps on your connected smartphone . (The map will no display on this receiver’s AV screen) *smartphone with data required
High-Power Sound
50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the one pair of preamp outputs to add an amplifier for more volume in your system.
Features
Receiver:
- Built-in Bluetooth with hands-free calling and audio streaming
- Easy access voice activation button to activate Apple Siri® or the Google Assistant on your phone
- Programmable on-screen shortcut to smartphone navigation app
- Dual iPlug Smart Remote app via Bluetooth (Apple®/Android™)
- AM/FM Tuner with 30 station presets (18FM/12AM)
- Short depth chassis for easy installation
- 7” High resolution LCD touchscreen
- Digital media receiver, does not play CDs/DVDs
- Supports audio only, no video playback
- Front microSD card slot
- Front USB input with 1A charging
- Front 3.5mm aux input
- Back-up camera input
- File playback: MP3 & FLAC
- 1 Pair of RCA preamp outputs (Front or Rear)
- 7 Preset EQ curves (Pop, Jazz, Rock, Flat, Classic, Beat, & User)
- 200 Watts max power (50W x 4)

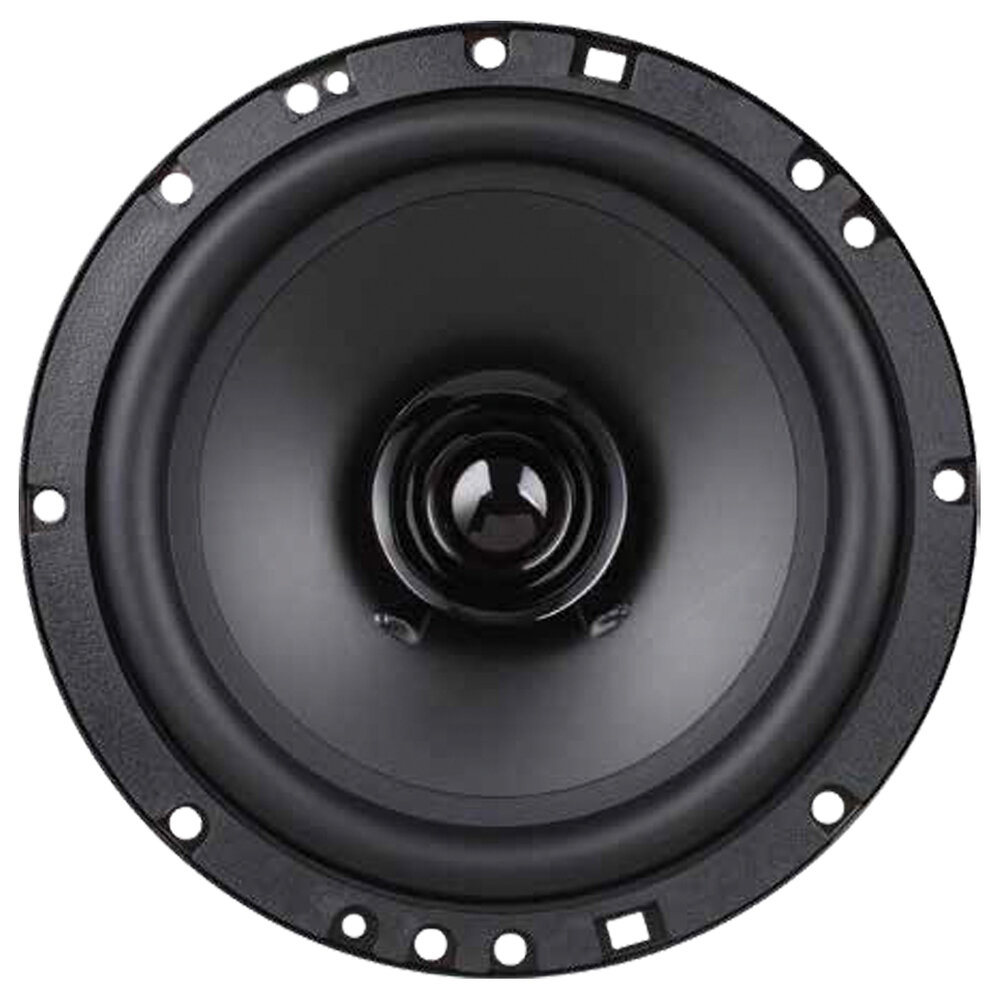

Speakers:
- Includes four 6.5” dual cone speakers
- Paper cone for clear, natural sound
- Treated foam surround
- 100 Watts (25 Watts x 4)
- Nominal impedance: 4 Ohms
- Frequency Response: 65Hz – 15kHz
- Sensitivity: 85dB (1W/1M)
- Speaker wire included
- Mounting hardware included
- Grilles not included

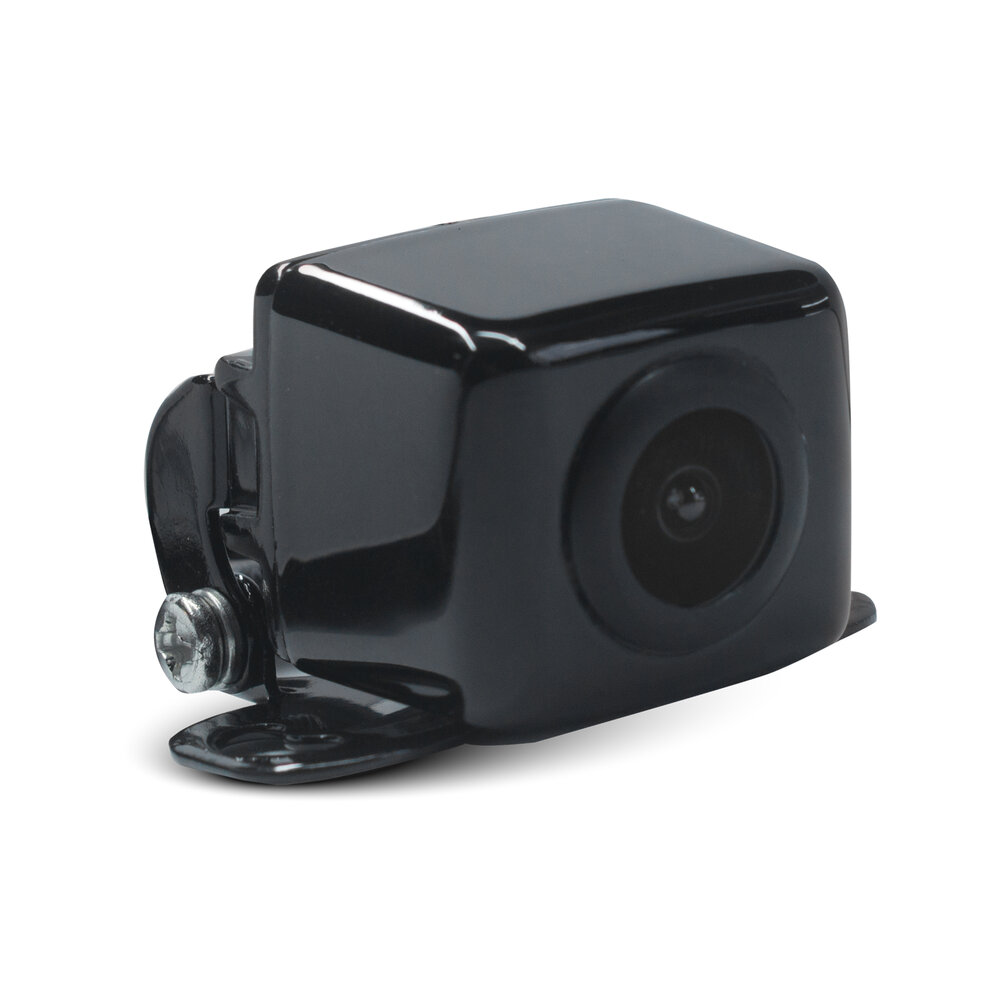

Backup Camera:
- Universal mount to install on a license plate or bumper
- Low-profile surface-mount design
- 170º wide-viewing angle lens
- Standard RCA video connection
- Low light performance: 0.5 LUX
- IP67 waterproof (camera only)
- 2-Wire power connection (12VDC connection required)
- Installation cable: 19.6 ft
- Image sensor: CMOS
- Back-up parking guides (On/Off)
