10.1″ AV Media Receiver with Apple CarPlay and Android Auto – XDCPA11BT
Authorized Retailer:
Connected Car
With support for both Apple CarPlay™ and Android Auto™ you can control key phone features directly from the receiver’s touchscreen or via voice-control — significantly reducing driver distraction.
Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via USB.
Messages
Ask your phone assistant to send, read, and reply to text messages. This hands free operation minimizes distraction and allows you to keep your hands on the wheel and eyes on the road
Maps
Use your phone assistant to request turn-by-turn directions – search by address or by points of interest. Maps will be mirrored on the receiver’s screen, including traffic information and estimated time to destination.
Music
Access music directly through the receiver’s touchscreen and via your phone assistant. The receiver will display artist and track information.
Phone
Use your phone assistant to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

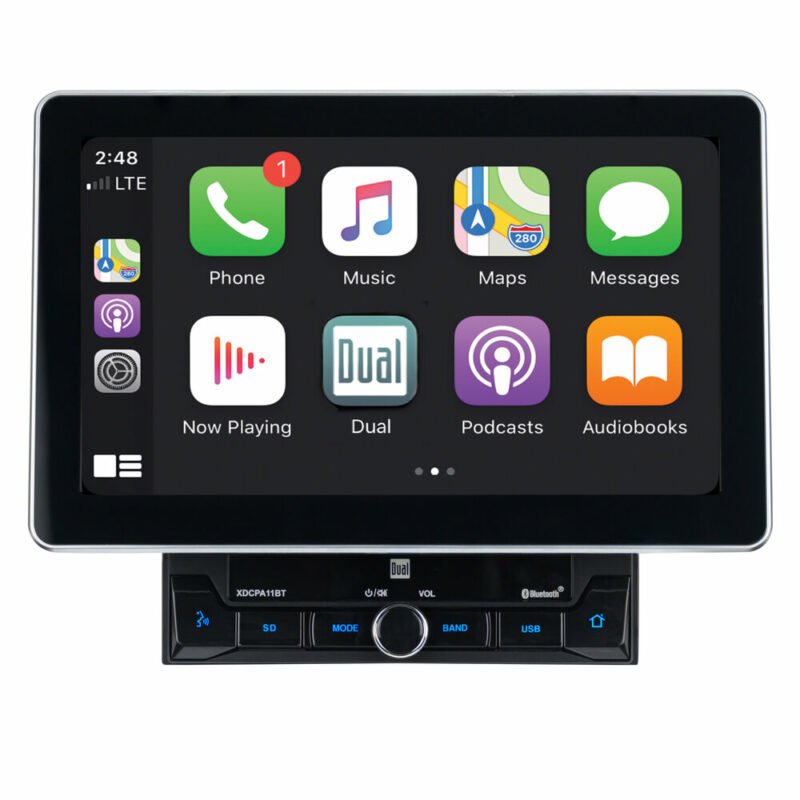

10″ Extra-Large Screen

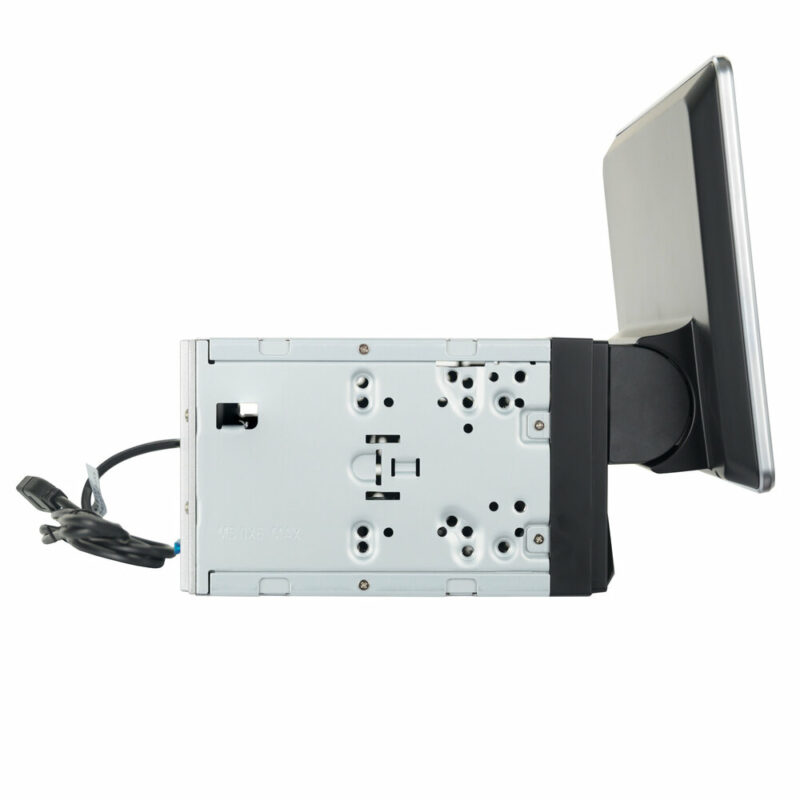

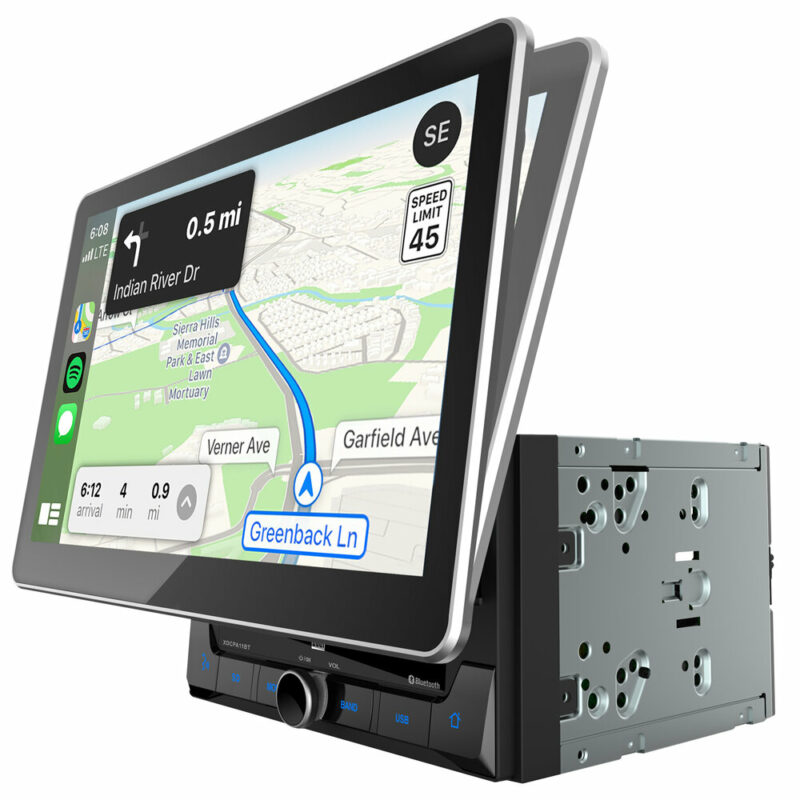

The 10.1″ Extra-large LED backlit LCD touchscreen maximizes your driving experience. The large display is easy to navigate and makes managing your music and apps effortless and convenient.The Extra-Large screen is adjustable allowing you to dial it in to the perfect angle. Installation screws lock the screen at the customized angle without requiring you to readjust it for each use.Designed to fit most 2 DIN dash openings (4” x 7”) this receiver brings a next-generation infotainment experience to your current vehicle.
| Playback | |
|---|---|
| Size | |
| Phone Connectivity | |
| Amplifier Outputs | |
| Steering Wheel Control Compatible | |
| Screen Size | |
| Peak Power Output | |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |
| Inputs - All | |
| USB Charge | |
| File Playback | |
| Card Slot | |
| RCA Outputs | |
| Front Panel | |
| Illumination | |
| Audio Processing | |
| Wireless Remote |
Features
- 10.1″ Extra-large capacitive touchscreen LCD (1024×600)
- Works with Apple CarPlay™
- Supports Android Auto™
- Built-in Bluetooth technology with hands-free calling, music streaming with ID3 tags and phonebook support (HFP, A2DP, AVRCP, PBAP). External microphone.
- AM/FM tuner with 30 station presets (18FM / 12AM)
- External microphone to access smartphone voice assistant
- File formats: MP3, FLAC
- Media playback: USB, microSD card
- Front and Rear USB input (front 1A, rear 1.5A fast charging)
- Front panel microSD card input
- 200 Watts (50 W x 4) MOSFET
- Backup camera input (RCA)
- Rear RCA A/V input
- 8 Band graphic EQ
- 8 EQ presets (Pop, Rock, Jazz, Classical, Beat, Flat, User and Soft)
- 3 Pair of 4V preamp output (F/R/S)
- Steering wheel control (compatible with most popular SWC interfaces)

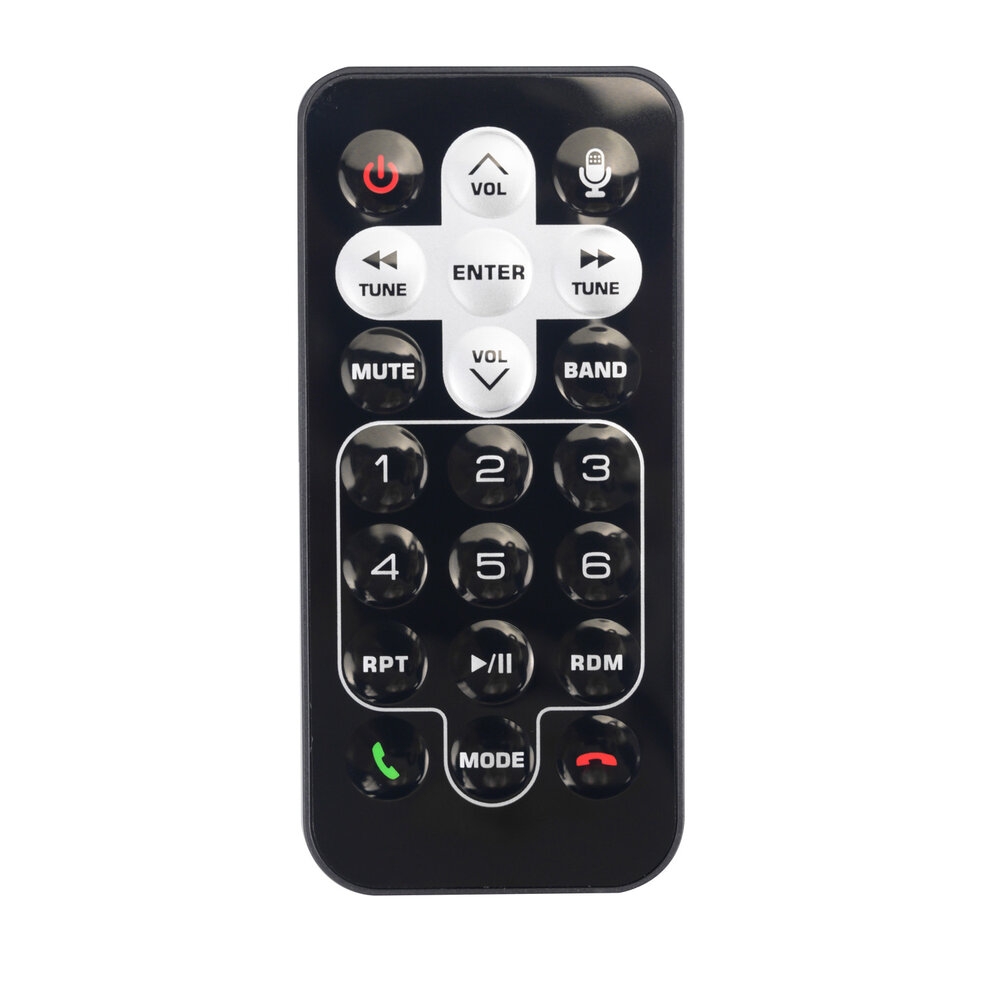

- Wireless remote control
- Digital media unit – will not play CDs/DVDs
Manuals (PDFs)
Firmware
THIS UPDATE ADDRESSES THE FOLLOWING:
- Improves the screen resolution while in Apple CarPlay or Android Auto
Note: Software is not interchangeable between models. Please do not attempt this update on any other model other than the XDCPA11BT.
Download Firmware Update for XDCPA11BT
HOW TO UPDATE:
- Download the firmware file from the link above.
- Unzip the downloaded file.
- Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
- With the vehicle Off, insert the USB Thumb Drive with Update Firmware into the XDCPA11BT USB Port.
- Turn the vehicle On, the radio will boot up with the update screen.
- Once the update is complete, the radio will shut down and power back up.
- Remove the USB Thumb Drive from the unit.
- The update is now complete.
To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see the information listed below, the update was done correctly.
– Version: V1.2
– Date: 20210513_1920
– SDK: 24.0.2.2.2.0.1.0
THIS UPDATE ADDRESSES THE FOLLOWING:
- Adds Spanish language pack, left hand drive / right hand drive for CarPlay and Android Auto and color brightness control
Note: Software is not interchangeable between models. Please do not attempt this update on any other model.
Download Firmware Update for XDCPA11BT
HOW TO UPDATE:
- Download the firmware file from the link above.
- Unzip the downloaded file.
- Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
- With the vehicle Off, insert the USB Thumb Drive with Update Firmware into the XDCPA11BT USB Port.
- Turn the vehicle On, the radio will boot up with the update screen.
- Once the update is complete, the radio will shut down and power back up.
- Remove the USB Thumb Drive from the unit.
- The update is now complete.
To check that the update was done correctly, go to Settings and press Others and then press System Version. Look for the new version details.
