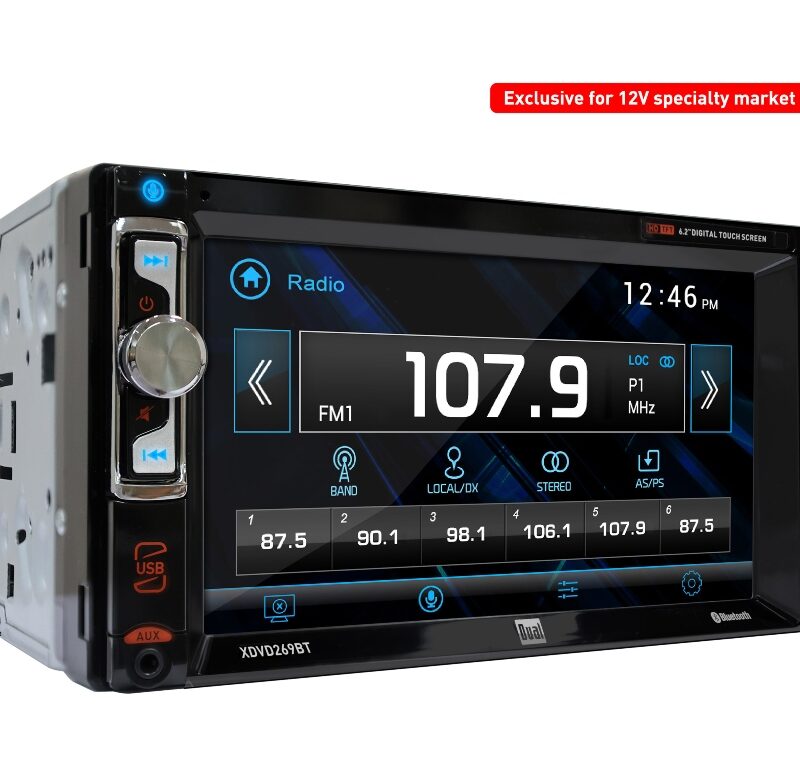

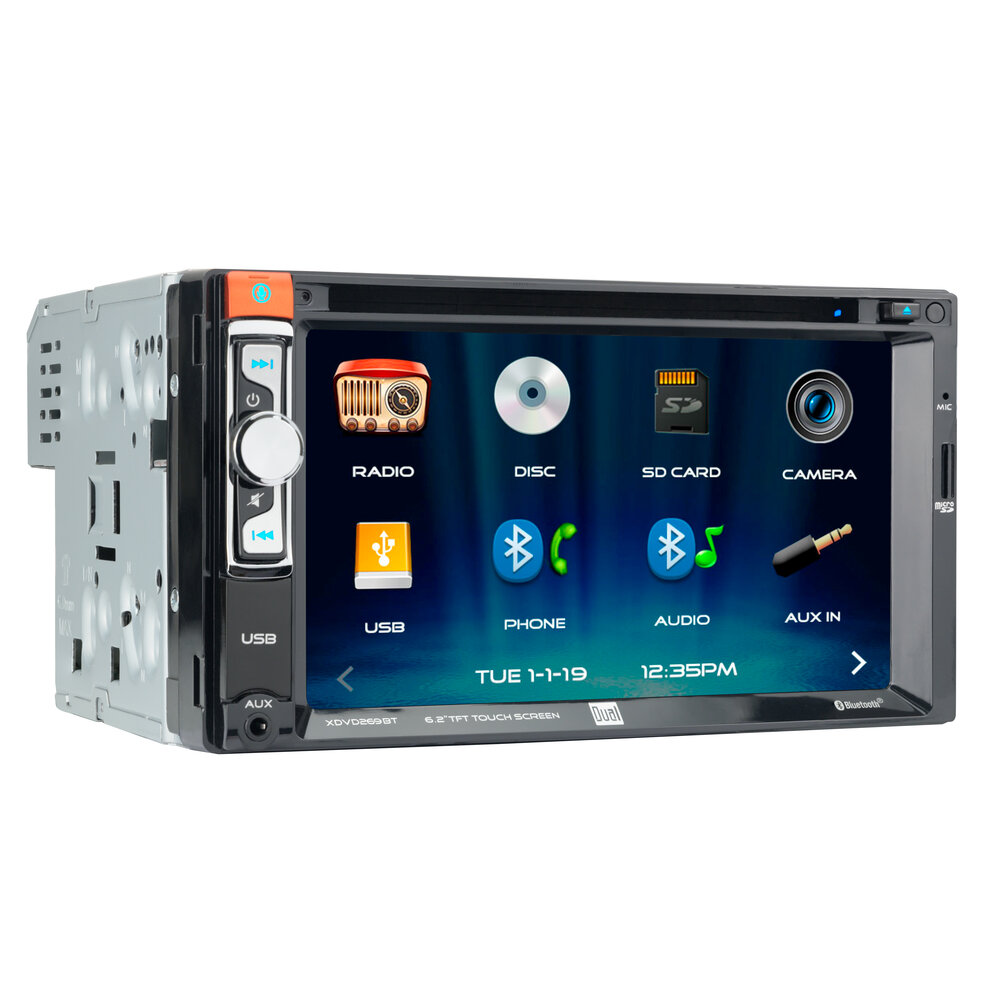

6.2″ AV DVD Receiver – XDVD269BT
Authorized Retailer:
Music Streaming & Hands-free Calling
Stream music, podcasts, and audiobooks from your smartphone and adjust tracks forward or backward directly from your Dual media receiver. Answer calls easily using the touchscreen icons.

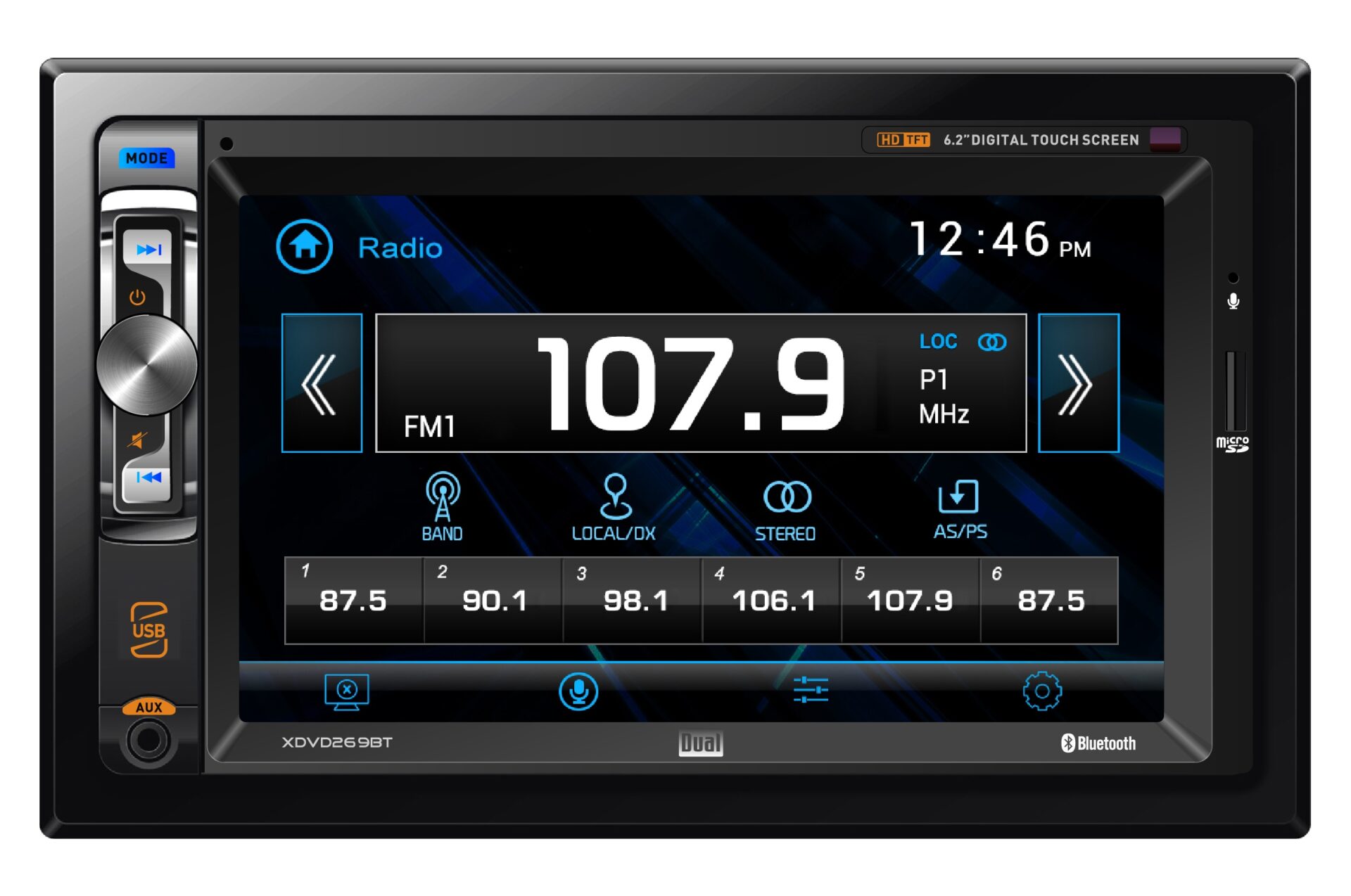

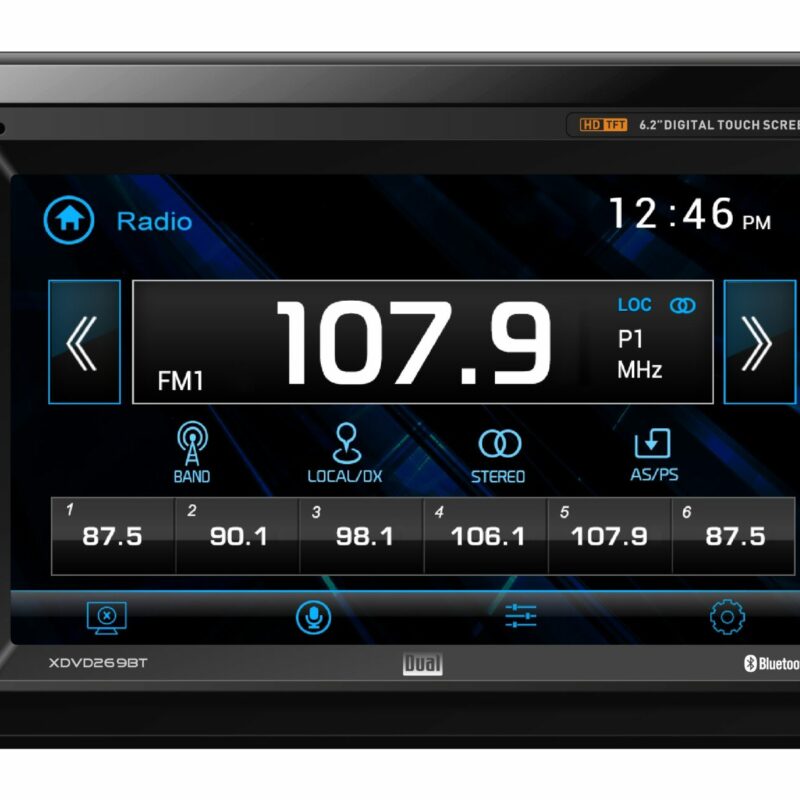

6.2″ Full Color Touchscreen
Easily manage and control your AM/FM radio, USB drive, AUX input, microSD card, and sources with Bluetooth® technology by using the large colorful touchscreen. Add an optional rear view camera to see behind you when backing up for safer driving.
Voice Activation Button
The receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car’s Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!
iPlug Smart Remote App
Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth.
Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight.
Download iPlug Smart Remote P1
High-Power Sound
50 Watts of peak power built-in for each of your 4 speakers. Tailor your EQ curve to match your listening preferences. Choose from Pop, Rock, Jazz, Classic, Beat and Flat, or dial in and save your own custom setting.Use the one pair of preamp outputs to add an amplifier for more volume in your system.
| Playback | |
|---|---|
| Size | |
| Phone Connectivity | |
| Amplifier Outputs | |
| Steering Wheel Control Compatible | |
| Screen Size | |
| Peak Power Output | |
| Bluetooth Features | Phonebook Support, Audio Streaming, Hands-free Calling, Voice Activation Button |
| Inputs - All | |
| USB Charge | |
| File Playback | |
| RCA Outputs | |
| Front Panel | |
| Illumination | |
| Audio Processing | |
| Chassis Depth | |
| AM/FM Receiver | |
| Wallpapers |
Features
- 6.2” High resolution LCD touchscreen (800p x 480p)
- Picture Settings – Brightness, Contrast, Hue, Saturation, Sharpness
- Screen Sleep Timer – Off, 10s, 20s, 30s
- Built-in Bluetooth with hands-free calling, music streaming, phonebook support and ID3 tags (HFP, A2DP, AVRCP)
- AM/FM Tuner with 30 station presets (18FM/12AM)
- Easy access voice activation button to activate Siri® or the Google Assistant™ on your phone
- Programmable on-screen shortcut to smartphone navigation app
- Dual iPlug Smart Remote app via Bluetooth (Apple®/Android™)
- Front microSD card slot
- Front USB input with 1A charging
- Front 3.5mm aux input

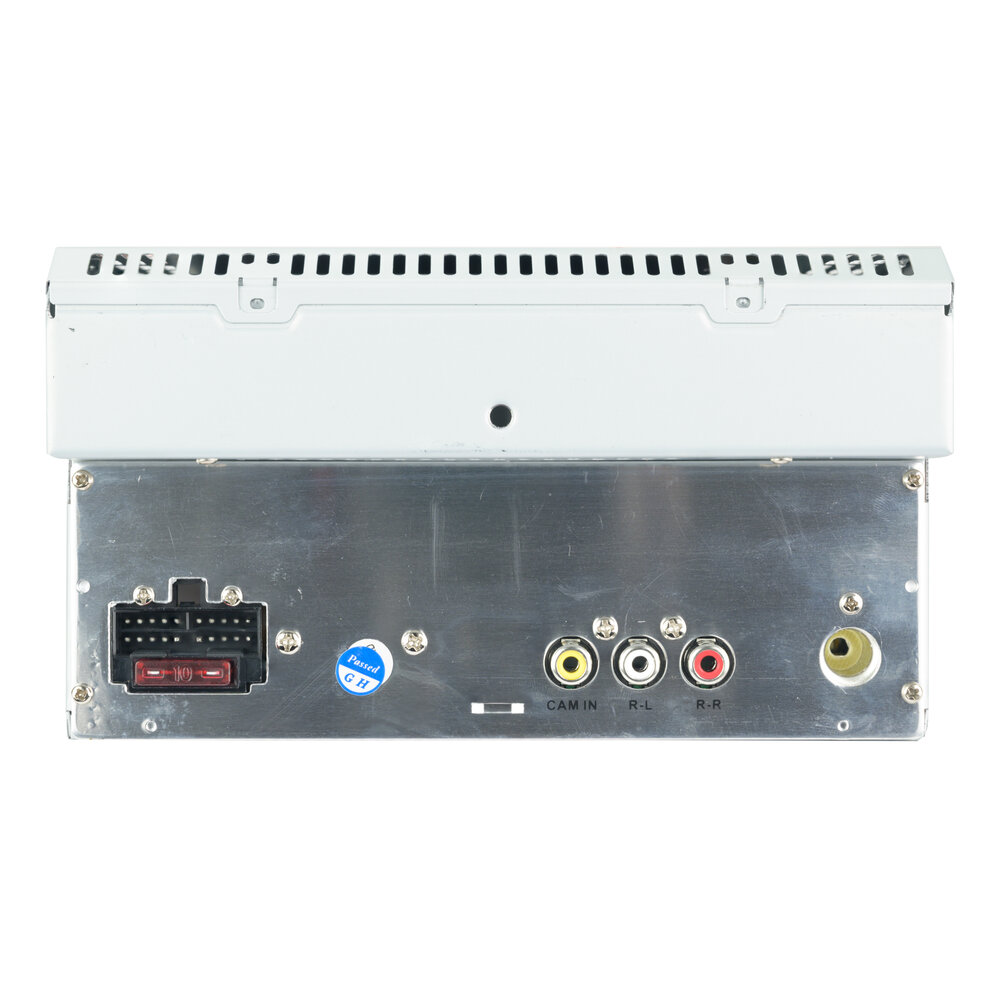

- Back-up camera input (RCA)
- Steering Wheel Control (SWC) Input (Compatible with PAC SWC Interfaces)
- Media playback: CD/DVD/USB/microSD
- File formats: MP3/JPEG
- 3 selectable wallpapers
- 1 Pair of RCA preamp outputs (Front or Rear)
- 7 Preset EQ curves (Pop, Jazz, Rock, Flat, Classic, Beat, & User)
- 7 Band EQ
- Time Alignment Adjustments
- Surround Mode – Concert, Wide, Church, Live, Passive, Off
- 200 Watts max power (50W x 4)
Manuals (PDFs)
Firmware
FIRMWARE UPDATES AND IMPROVEMENTS:
- Fixes the “USER” EQ setting to save when the car is turned off
Note: Both CPU and MCU files must be downloaded and applied for the update to work
