6.5″ 4-Way Speakers – DLS654
Authorized Retailer:
4-Way Design
The four way design enables mid and high frequencies to be projected in a uniform and wide dispersion pattern for smooth off-axis response and high quality sound performance.
Dual Piezo Tweeters and a Balanced Dome Midrange
The silk tweeters and balanced midrange offers smooth high frequency response and enhanced vocal quality.
Rubber Surround
The rubber surround is designed to withstand heat and moisture for a prolonged speaker lifespan.
Injection Molded Polypropylene (IMPP) Woofer Cone
This style speaker cone is designed for higher sensitivity and rigidity which results in increased low frequency and richer output.
Vented Basket
The vented basket helps to dissipate heat for improved efficiency and durability.

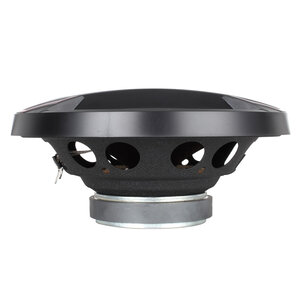

Low Profile Basket Design
The low profile basket is designed to be unobtrusive and helps with installation flexibility.
| Speaker Size | |
|---|---|
| Speaker Type | |
| Grilles | |
| Max RMS Power | |
| Impedance | |
| Peak Power Output | |
| Sensitivity | |
| Frequency Response | |
| Tweeter Material | |
| Tweeter Size | |
| Midrange Material | |
| Midrange Size | |
| Woofer Material | |
| Basket Material | |
| Surround Material | |
| Crossover | |
| Cutout Diameter | |
| Top-Mount Depth | |
| Bottom-Mount Depth | |
| Mounting Height | |
| Tweeter Height |
Features
Features:
- 6 1/2” – 6 3/4” 4-way design
- Injection-molded polypropylene woofer cone
- High strength butyl rubber surround
- 35mm Mylar® balanced dome midrange
- Two 15mm piezo tweeters
- 6dB/octave high-pass crossover
- High-performance coated stamped steel basket
- Hardware included

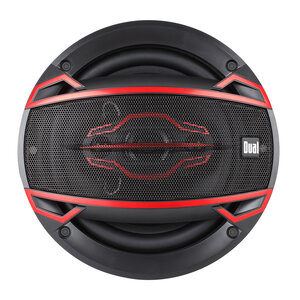

- Grilles included
Specifications:
- Sensitivity: 87dB
- Frequency response: 70Hz – 20kHz
- Nominal impedance: 4 Ohm
- RMS power: 40 Watts
- Peak power: 160 Watts
Dimensions:
- Top-mount depth: 2.17”
- Bottom-mount depth: 2.36”
- Cut-out diameter: 5.60”
- Mounting height: 0.67”
- Tweeter height: 0.51”
